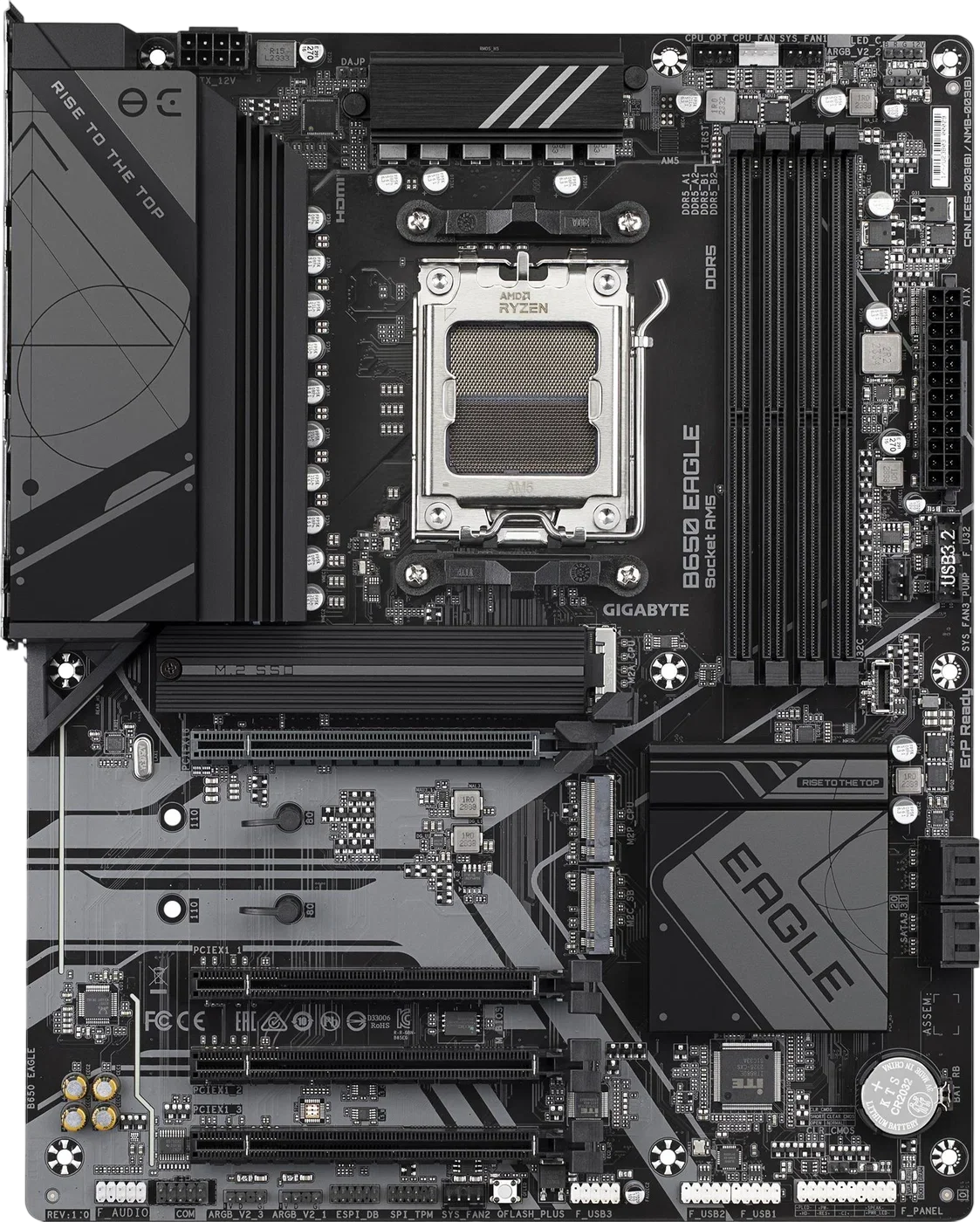

GIGABYTE B650 EAGLE AX is a motherboard designed for the latest AMD Ryzen™ 7000, 8000 and 9000 series processors. It offers support for modern DDR5 memory, fast M.2 slots including PCIe 5.0 and 4.0, reliable power with a digital 12+2+2 phase passive. Gigabit network provides fast and stable connectivity, while HDMI and DisplayPort interfaces expand graphics output options. The board is equipped with practical technologies such as EZ-Latch for easy component installation and Q-Flash Plus for quick BIOS updates even without a processor or memory.

• Support for AMD Ryzen™ 7000, 8000 and 9000 processors
• 12+2+2 phase digital power supply with high-quality MOSFETs
• 4 DDR5 slots with EXPO/XMP, frequency up to 7600 MT/s
• 3× M.2 (1× PCI Gen5, 2× PCI Gen4) with Thermal Guard
• Advanced cooling system for MOSFETs and M.2 slots
• GbE LAN with bandwidth control

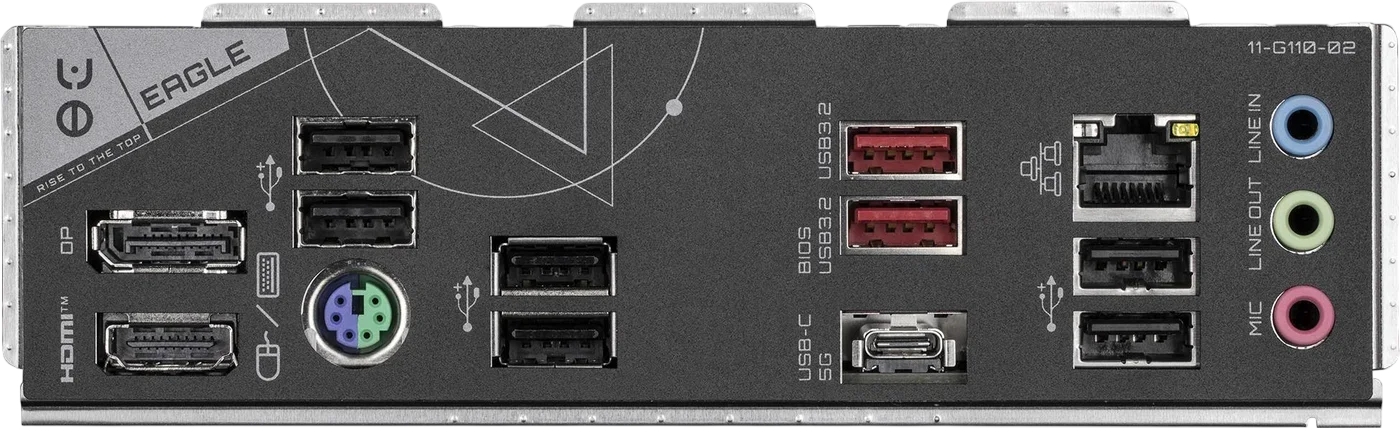

• HDMI and DisplayPort for monitor connection
• High-quality audio with noise isolation and Hi-Fi capacitors
• Smart Fan 6 with multiple sensors and hybrid connectors
• EZ-Latch and Q-Flash Plus for easy operation

The board uses solid power connectors, a 6-layer PCB design, and quality components to ensure stability even under heavy loads. Fully covered MOSFET heatsinks with high thermal conductivity keep critical parts at optimal temperatures. Smart Fan 6 then adds extensive fan and water pump management capabilities with precise control and the ability to create custom profiles. In the area of connectivity, a gigabit LAN card is available with bandwidth management support.
